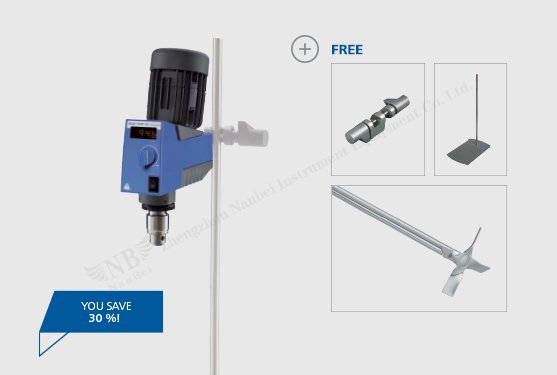

NW20 Электрический миксер
NANBEI предлагает идеальную подвесную мешалку для вашей высокой вязкости. Мешалки NANBEI без труда обрабатывают объемы смешивания до 200 л
|
Stirring quantity max. per stirring position (H2O) |
20 l |
|
Motor rating input |
70 W |
|
Motor rating output |
35 W |
|
Speed display |
LED |
|
Speed range |
60 - 2000 rpm |
|
Viscosity max. |
10000 mPas |
|
Output max. at stirring shaft |
26 W |
|
Permissible ON time |
100 % |
|
Torque max. at stirring shaft |
150 Ncm |
|
Torque max. at stirring shaft at 60 1/min (overload) |
300 Ncm |
|
Torque max. at stirring shaft at 100 1/min |
150 Ncm |
|
Torque max. at stirring shaft at 1.000 1/min |
24 Ncm |
|
Speed range I (50 Hz) |
60 - 500 rpm |
|
Speed range II (50 Hz) |
240 - 2000 rpm |
|
Speed range I (60 Hz) |
72 - 600 rpm |
|
Speed range II (60 Hz) |
288 - 2400 rpm |
|
Speed control |
stepless |
|
Setting accuracy speed |
1 ±rpm |
|
deviation of speed measurement |
30 ±rpm |
|
Stirring element fastening |
chuck |
|
Temperature display |
no |
|
Chuck range min. diameter |
0.5 mm |
|
Chuck range max. diameter |
10 mm |
|
Hollow shaft, inner diameter |
10.5 mm |
|
Hollow shaft (push-through - when stopped) |
yes |
|
Fastening on stand |
extension arm |
|
Extension arm diameter |
13 mm |
|
Extension arm length |
160 mm |
|
Torque display |
no |
|
Nominal torque |
1.5 Nm |
|
Timer |
no |
|
Dimensions (W x H x D) |
88 x 294 x 212 mm |
|
Weight |
3.1 kg |
|
Permissible ambient temperature |
5 - 40 °C |
|
Permissible relative humidity |
80 % |
|
Protection class according to DIN EN 60529 |
IP 20 |
|
RS 232 interface |
no |
|
USB interface |
no |
|
Analog output |
no |
|
Voltage |
220 - 240 / 100 - 115 V |
|
Frequency |
50/60 Hz |
|
Power input |
72 W |
